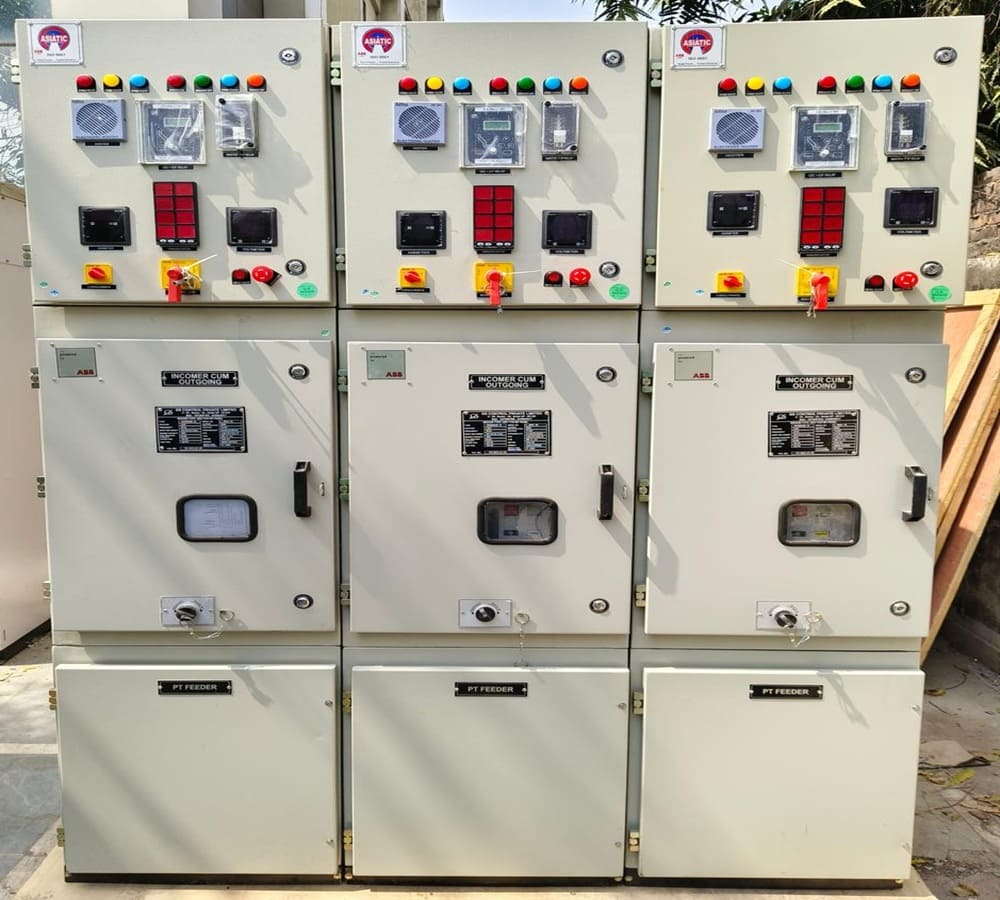

Vacuum Circuit Breaker (VCB)

The 11/22/33KV Vacuum Circuit Breaker (VCB) Panel is designed for transformer protection, ensuring reliability and safety. Manufactured to meet strict industry standards, these panels are known for their superior quality and cost-effectiveness. VCB panels are available from original equipment manufacturers (OEMs) for new installations, repairs, retrofits, and upgrade projects.

How VCB Panels Work

A VCB panel is a type of circuit breaker where the arc quenching occurs in a vacuum environment. This technology is best suited for medium voltage applications. Although it can be used for higher voltages, it is not commercially viable.

Key Features & Materials

• Utilizes CuCr (Copper Chromium) for electrical contacts, ensuring high performance.
• Requires minimal maintenance compared to other relay control panels.
• Ideal for industrial, commercial, and power distribution applications.

Why Choose VCB Technology?

VCB is one of the most trusted and reliable current interruption technologies in medium voltage switchgear. Engineers continue to enhance its efficiency and durability, making it a preferred choice for modern electrical systems.

NGR PANEL

The NGR Panel houses a Neutral Grounding Transformer (NGT) and a Neutral Grounding Resistor (NGR), which are essential for grounding or earthing the neutral current during an unbalanced three-phase generator load. This setup ensures proper generator protection.

Functionality

The Neutral Grounding Transformer (NGT) steps down the voltage of the neutral bus from 6.6 KV, 11 KV, or 15.75 KV to 110V or 220V. This reduced voltage is then connected to a neutral grounding resistor and an earth terminal to bring the neutral bus voltage as close as possible to zero.

Key Features

• Compact & Safe: Designed to optimize space while ensuring safety.
• Economical: Cost-effective solution for grounding needs.
• Easy Maintenance: Vertical bus bars simplify servicing, even in double-front panels.
• Reliable Performance: Fully type-tested bus bar system.
• Space-Saving Design: Compact depth for efficient use of switchgear rooms.
• Improved Accessibility: Wider cable alley for easy termination.

OCB Panel

We offer a premium quality range of OCB Panels, widely used in both industrial and commercial sectors for efficient power transmission. These panels are manufactured using state-of-the-art technology under the strict supervision of trained professionals.

To ensure flawless performance, each OCB Panel undergoes rigorous quality checks before being dispatched to clients. Available in various power capacities and configurations, these panels cater to diverse industry needs.

Key Features

• High Efficiency: Ensures optimal power management.
• Accurate Functioning: Designed for precision and reliability.
• Easy Installation & Maintenance: User-friendly design for hassle-free setup and servicing.

HT Automatic Harmonic Power Factor Correction Panel (HT AHPFC)

Our HT AHPFC Indoor Systems utilize high-quality FRAKO / CPSL capacitors and reactors. As a pioneer in advanced power correction solutions, we provide a complete tuned + detuned HT AHPFC scheme in collaboration with FRAKO Germany.

Designed to reduce losses at HT bus and prevent overcompensation, this panel enhances system stability by injecting reactive power in line with network load requirements. The process operates in auto mode using the advanced EMR 9606 AHPFC Relay.

Key Benefits

• Advanced Technology: Uses FRAKO’s state-of-the-art components for optimized power correction.
• Enhanced System Stability: Injects reactive power in auto mode for improved network load handling.
• Customized Solutions: Designed to meet specific client requirements.

Features

• Fully Automated Operations
• Electrical Power Monitoring & Controlling
• Steady Performance with Minimum Maintenance
• Tuned/Detuned/Tapped Harmonic Filter Reactors
• Tuned to 3rd, 5th, 7th, 11th, or 13th Order Harmonics

HT Breaker Panel (Load Break Switch Panel)

The HT Breaker Panel, also known as the Load Break Switch (LBS) Panel, is designed for both indoor and outdoor applications. It features a high-performance Load Break Switch (LBS) that enables seamless switching ON & OFF of transformers. The panel is equipped with HRC fuses that conform to international standards, ensuring reliable protection.

The tripping system is implemented through a fuse-blown mechanism, providing enhanced safety. Additionally, 11 KV CT (Current Transformer) and PT (Potential Transformer) are incorporated for both measurement and protection of the electrical system.

Applications

• Power Transformers
• Power Generation
• Capacitor Banks
• Power Distribution

Generator Circuit Breaker (GCB) Panel

The Generator Circuit Breaker (GCB) compartment provides on-line isolation in the main power circuit between the generator and generator transformer, utilizing either a vacuum or SF6 draw-out circuit breaker. The metal-enclosed switchgear compartment houses both control and protection system components, ensuring reliable operation.

Powergear has also designed mobile cubicles equipped with line-side and neutral-side bus bars, along with the Generator Circuit Breaker and metering/protection equipment. These mobile GCB cubicles are mounted on a trailer, making them ideal for short-term mobile power plants.

We Provide ABB Make Generator Circuit Breaker Panel

Features

• Fully compartmentalized design
• Draw-out and fixed types available
• Vacuum or SF6 circuit breaker for fault disconnection
• Non Draw-out and Draw-out type Potential Transformers
• Operating aisle (if required)
• Power connection via Busducts or cables
• Optional fire protection system
• Includes off-load isolators and Earth switches
• Constructed with Aluminium or Copper conductors with silver-plated joints
• Forced air-cooled option for higher current rating
• Houses Current Transformers, Potential Transformers, Surge Arresters, Surge Capacitors, etc.

Ratings

• Voltage: Up to 24 kV
• Continuous Current: Up to 10,000 Amps
• Short Circuit Ratings: Multiple options available
• BIL: Up to 125 kV

Ring Main Unit (RMU)

A Ring Main Unit (RMU) is a fully sealed, gas-insulated compact switchgear unit. It provides a reliable and efficient solution for medium-voltage power distribution. The primary switching devices can be:

• Switch disconnectors
• Fused switch disconnectors
• Circuit breakers

When equipped with a circuit breaker, the RMU also includes protective relaying, which can range from a basic self-powered type to a more advanced version with communication capabilities.
